Type |
HML-ISO 35-5-C-W-F01-A01 |
Material |
Polyamide, fibre reinforced |
Material globe/diffuser |
Polycarbonate |
Colour |
Black |
Wattage |
30 W |
Voltage |
24 V / 12V |
Type of Voltage |
DC |
Protection class |
IP56 |
Operational areas |
Outdoor, Emergency |
Temp. range min |
-25 °C |
Temp. range max |
55 °C |
Lamp |
Halogen lamp |
Reflector |
Glass |
Lamp |
included |
Lamp shape |
reflector |
Average lamp durability |
4000 h |
Globe colour |
Clear |
Light performance |
immediately |
Lampholder |
GY6,35 |
Number of lampholder |
1 ST |
Material cable gland |
Polyamide |
Power cable |
H07RN-F 2x1,5mm² |
Ø cable diameter min |
6 mm |
Ø cable diameter max |
13 mm |
External dimensions LxWxH |
160 x 244 x 215 mm |
Approval |
DNV |
Weight |
12,5 kg |
Equipment |
filter: red, green, blue, incl. PowerPack + Charger |
Advice |

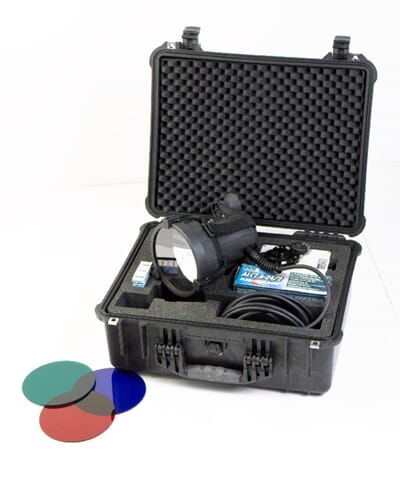

Carrying case and filter discs |
Remarks:
- Signal range: 3.400m during the day, 21.400m at night
Equipment:

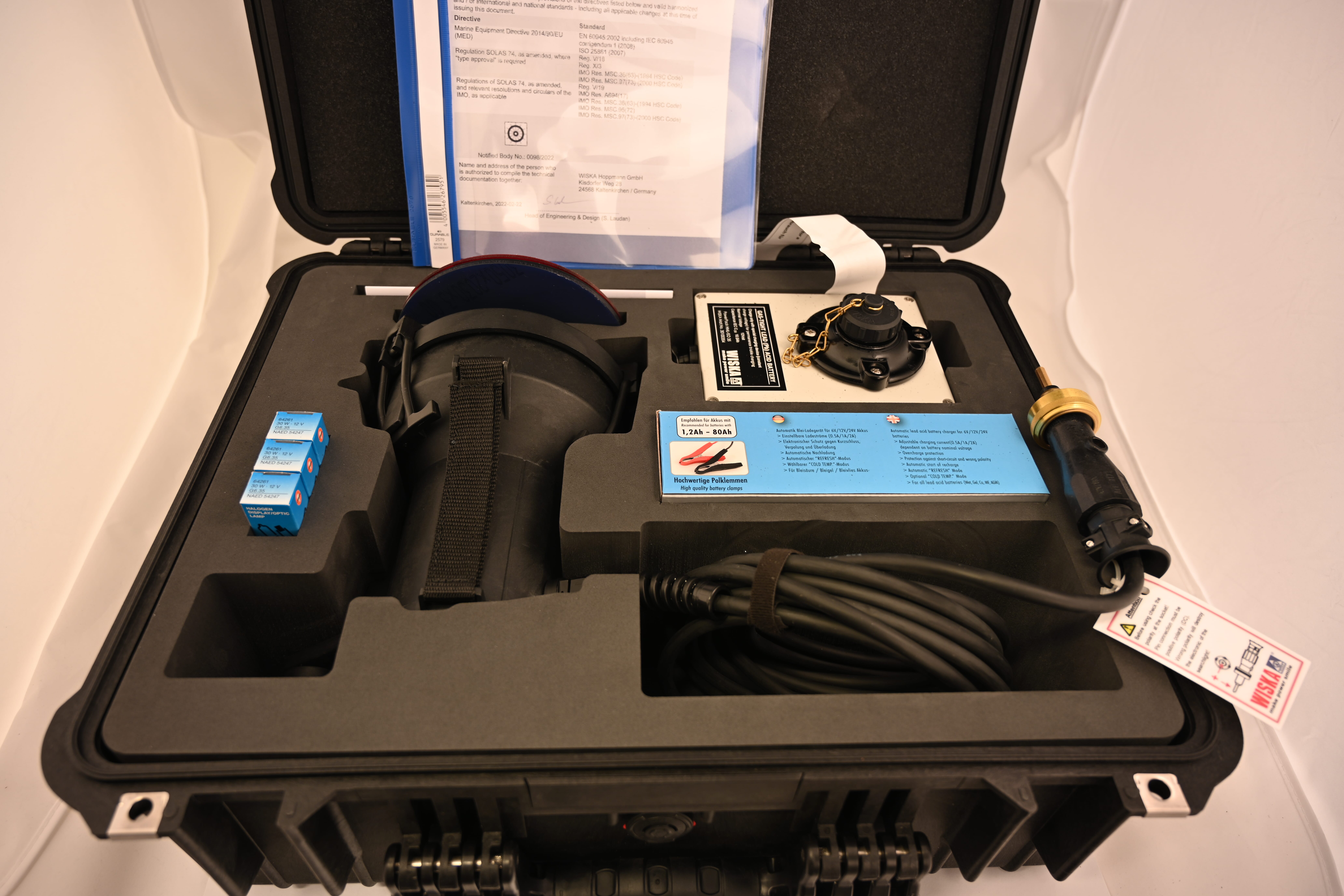

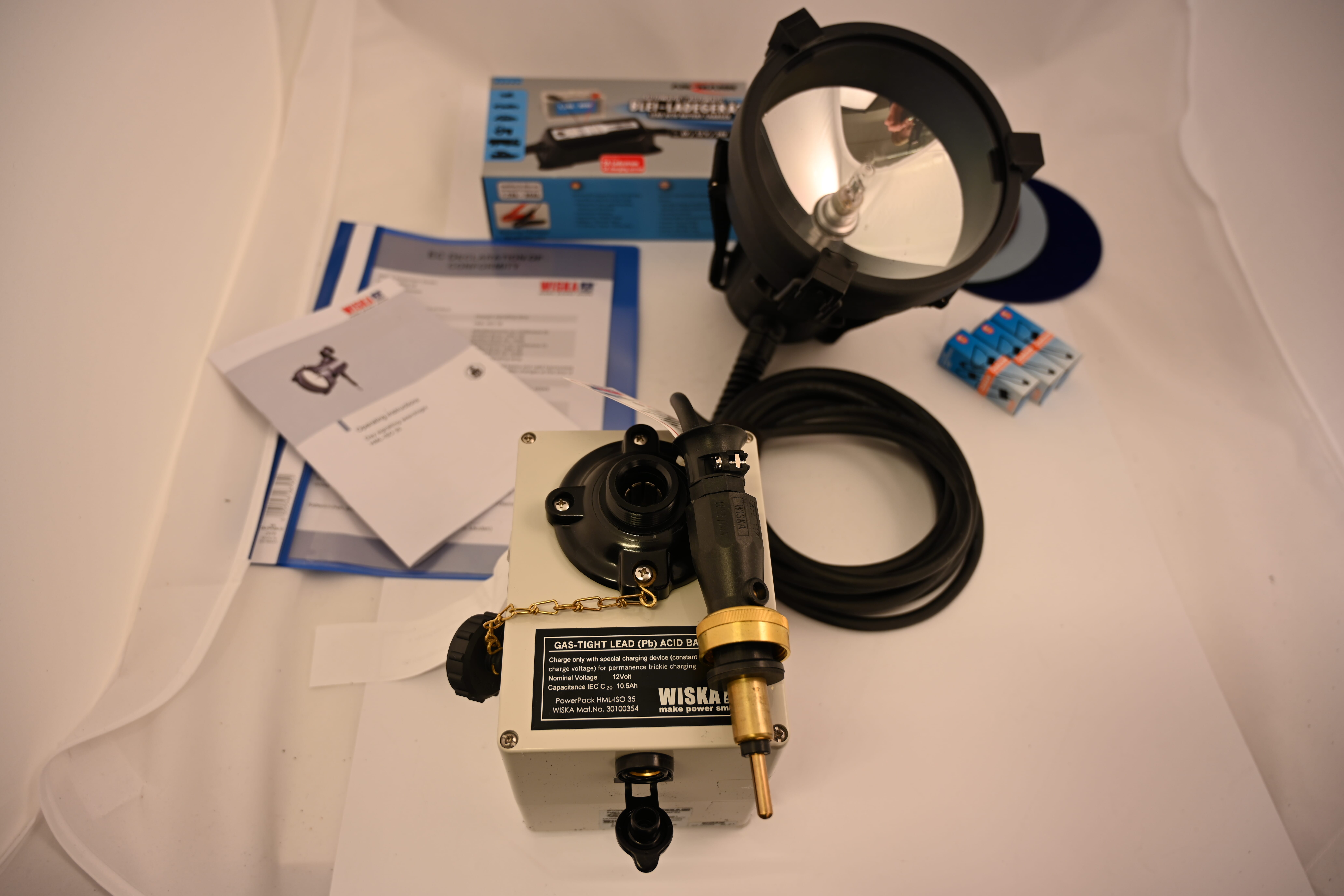

- Toughened front glass - Rubber sealing - Quick fastening rubber - Sighting device - Micro switch for left- and right hander - mounted halogen lamp + 3 spare lamps - Connection cable 5m - SOS function - Permanent light function - Cargo and storage in watertight, IP 67 (1m |
