Dynamo Marine 12V

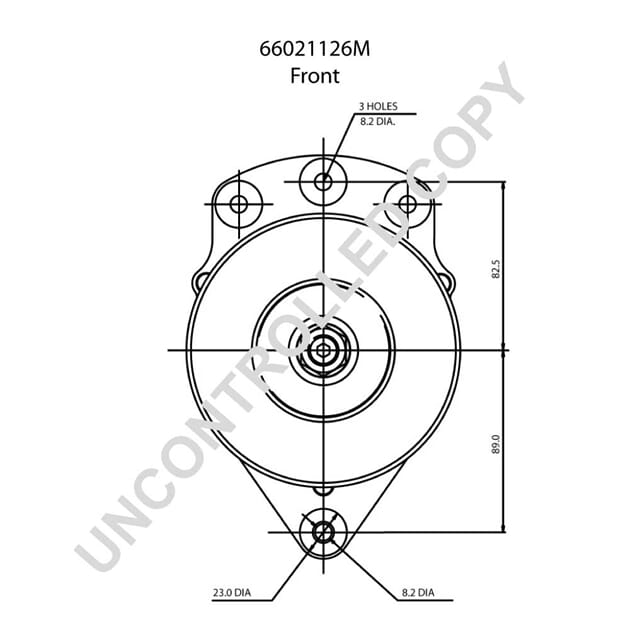

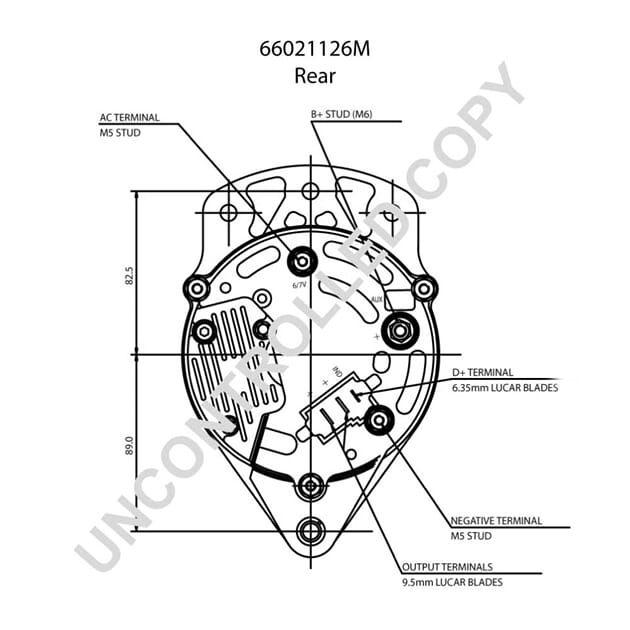

Spec Value Item number 66021126M Sales number N/A Series number AS123 Notes New, Euro plug connector Fix circle (Mount): 89mm Fix circle (Adjuster): 82.5mm Bracket angle: -30° / 0° / 30° Cut in speed: 1200, Max speed: 15000 Weight: 5.1kg System voltage 12 Output6 Mounting style SWUNG Dimensions in N/A Rotation BI-DIRECTIONAL Housing coating RAW UL Approved No Mounting bolt size 8.2 Mounting ear size 8.2 Mounting holes 3 Positive stud M6 Negative stud M5 Shaft diameter 15mm
